Juying case|Hangzhou Xiaoshan International Airport Phase III project new terminal and landside transportation center project

Time:2025-07-23 15:56:03

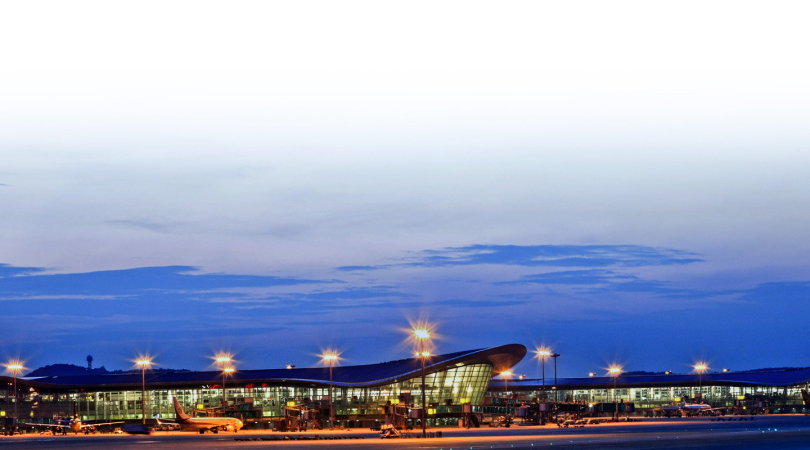

East of West Lake, on the banks of the Qiantang River, the huge silver-white roof is like a wave, as if another West Lake has emerged.

The third phase of Hangzhou Xiaoshan International Airport is the largest airport construction project in Zhejiang so far, with a construction investment scale of more than 30 billion yuan compared to the sum of the first and second phases of the airport expansion. The core project is the new terminal (T4) and the landside transportation center terminal, which is a large-scale comprehensive transportation hub integrating civil aviation, high-speed rail, subway and bus, which is emotional, green and intelligent, and will also drive the high-quality development of the airport economy!

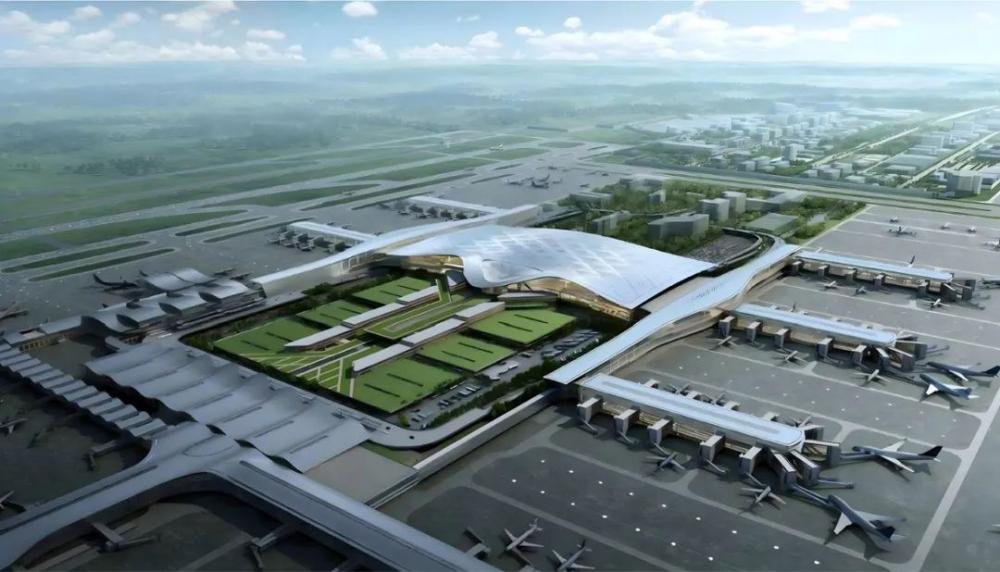

01 Project name: Hangzhou Xiaoshan International Airport Phase III project new terminal and landside transportation center project2.png

The total investment of the third phase of the expansion project of Xiaoshan Airport reached 27.1 billion yuan, ranking among the top airport investments in the country. The total construction area is about 1.5 million square meters, including T4 terminal, comprehensive transportation center, high-speed rail station building, energy center, etc.

The investment in T4 terminal alone is nearly 10 billion yuan, which is currently the largest civil aviation terminal project in China with a single bid section contract value. Its total area reaches 720,000 square meters, which is nearly twice as large as the previous three terminals combined.

02 Juying customized ventilation scheme
At present, thousands of fire-fighting, ventilation, and explosion-proof fans have been installed on site, debugged, and operated normally! Juying Fan will continue to adhere to scientific and technological innovation, deeply understand customer needs, and help green buildings with high quality and sustainable development through continuous innovation and iteration of product solutions and high-quality service guarantees!

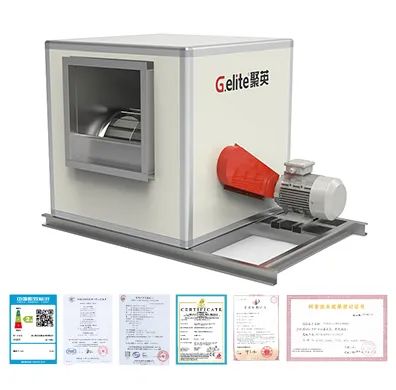

HTFC centrifugal fire smoke exhaust fan
Performance: Maximum air volume 266000m³/h, maximum power 200KW

Structure: built-in high-efficiency centrifugal fan, peripheral sound-dampening and anti-corrosion box

Features: Maximum efficiency up to 80%, impeller dynamic balance G2.5

Usage: fire smoke exhaust, exhaust oil fumes, water vapor, corrosive and other special media gas transportation low-noise pipeline ventilation, explosion-proof ventilation, etc

Authoritative certifications: energy-saving second-level energy efficiency certification, explosion-proof CCC certification, national fire certification, EU CE certification, patent authorization, Zhejiang Province scientific and technological achievement appraisal products

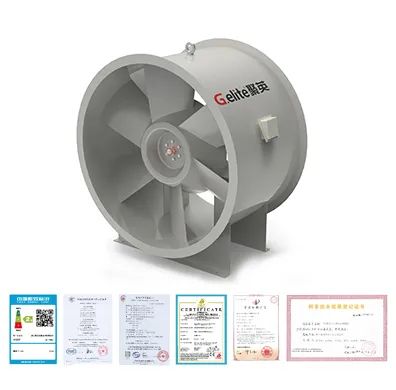

JSF low-noise axial flow fan
Performance: Maximum air volume 307100m3/h, maximum power 132KW

Structure: high-strength cast aluminum alloy impeller, integrated spinning air dryer, hoop type reinforced structure

Features: Adjustable wing-type blade angle, smooth aerodynamics, dynamic balance G2.5

Usage: fire protection high-temperature smoke exhaust, pipeline pressurized air supply, explosion-proof ventilation, etc

Authoritative certifications: energy-saving second-level energy efficiency certification, explosion-proof CCC certification, national fire certification, EU CE certification, patent authorization, Zhejiang Province scientific and technological achievement appraisal products
