Time：2025-07-23 14:24:59

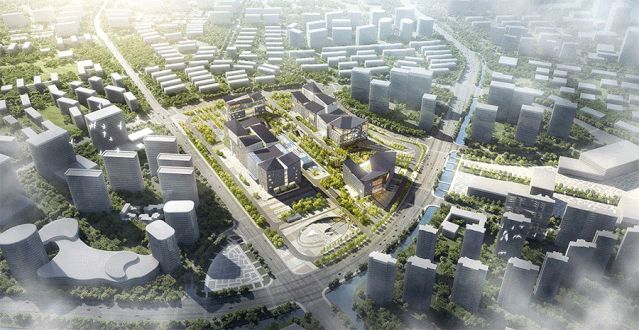

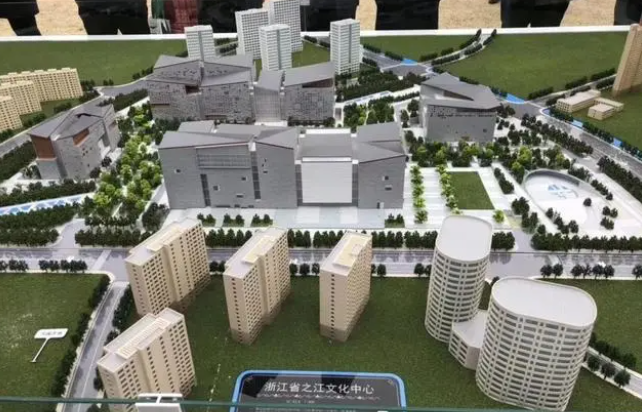

Zhejiang Zhijiang Cultural Center is a diversified and complex cultural complex, which is an important project of cultural infrastructure construction in Zhejiang Province during the 13th Five-Year Plan. This project will become an important cultural landmark in the province and even the whole country, which has attracted great attention from the early stage of project planning, especially after the project is settled in the Zhijiang plate, which can be said to be one of the important public facilities in the Zhijiang area.
Project Overview
PART 01
Zhijiang Cultural Center integrates a variety of venues, is a new cultural complex project, and is also a leading project to gather cultural resources and promote the quality and upgrading of the province's public cultural facilities network. The project extends to Jianghan Road in the east, Bibo Road in the south, Fenghua Road in the west, and Wenjing Road in the north, with a total land area of 258 acres, a total construction area of 320,000 square meters, a total investment of about 3.23 billion yuan, and a construction period of 2019 to 2022, with a planned investment of 290 million yuan in 2019, mainly including the new Zhejiang Library, the new Zhejiang Provincial Museum, the Zhejiang Provincial Intangible Cultural Heritage Museum, the Zhejiang Provincial Literature Museum and other "four halls" and supporting facilities. The completion of the project is of great significance to enhance cultural vitality and enhance the cultural competitiveness of West Lake District.
Zhejiang Zhijiang Cultural Center strictly controls every link from design and construction to equipment procurement. With rich experience in air system and intelligent control application of large-scale commercial complexes, office buildings and hotels, strong R&D and innovation capabilities, good performance reputation, rich and complete certification products, and lean manufacturing capabilities, Juying Fan has won the full trust of owners. For Juying Fan, every cooperation is a persistence in ingenuity and belief, which confirms the quality of Juying Fan.

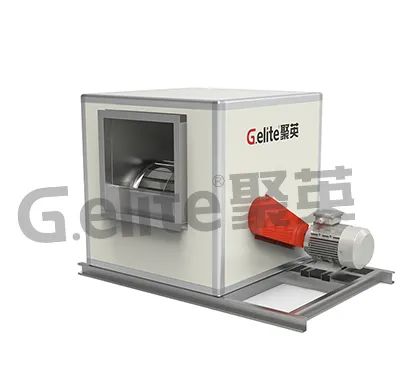

Performance: Maximum air volume 113400m³/h, maximum power 55KW
Structure: built-in high-efficiency centrifugal fan, peripheral sound-dampening and anti-corrosion box
Features: Maximum efficiency of 63%, impeller dynamic balance G2.5
Usage: fire smoke exhaust, exhaust oil fumes, water vapor, corrosive and other special media gas transportation low-noise pipeline ventilation, explosion-proof ventilation, etc
Authoritative certifications: energy-saving second-level energy efficiency certification, explosion-proof CCC certification, national fire certification, EU CE certification, patent authorization, Zhejiang Province scientific and technological achievement appraisal products

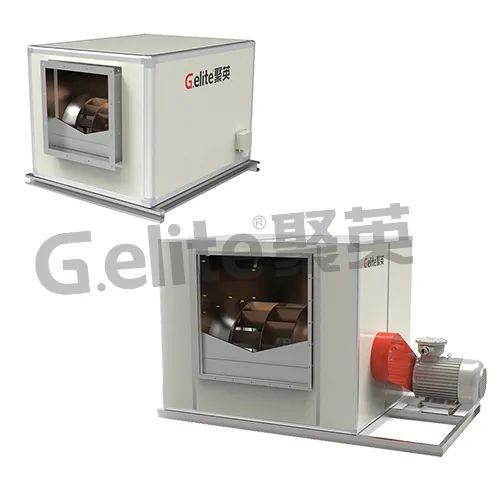

Performance: Maximum air volume 270000m³/h, maximum power 200KW
Structure: built-in high-efficiency centrifugal fan, peripheral sound-dampening and anti-corrosion box
Features: The highest efficiency is 63%, and the impeller dynamic balance is G2.5
Uses: fire smoke exhaust, oil smoke, water vapor, corrosive and other special media gas transportation, low-noise pipeline ventilation, explosion-proof ventilation, etc
Authoritative certification: energy-saving secondary energy efficiency certification, explosion-proof CCC certification, national fire certification, EU CE certification, patent authorization, Zhejiang Province scientific and technological achievements appraisal products

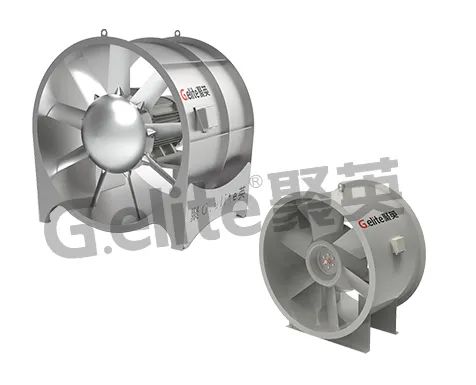

Performance: Maximum air volume 3070100m³/h, maximum power 132KW
Structure: Strong cast aluminum alloy impeller, integrated screw air dryer, hoop type reinforced structure
Features: The maximum efficiency is 77%, the angle of the airfoil blades is adjustable, the aerodynamic force is smooth, and the dynamic balance is G2.5
Uses: fire fighting, high temperature smoke exhaust, pipeline pressurized air supply, low-noise pipeline ventilation, explosion-proof ventilation, etc
Authoritative certification: energy-saving secondary energy efficiency certification, explosion-proof CCC certification, national fire certification, EU CE certification, patent authorization, Zhejiang Province scientific and technological achievements appraisal products

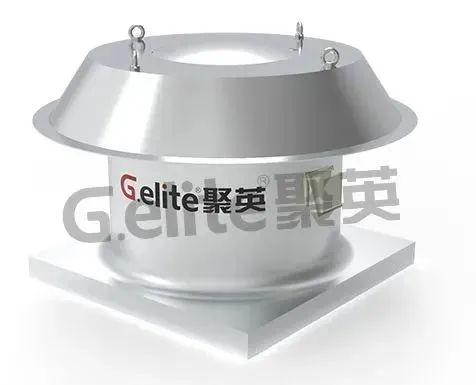

Performance: Maximum air volume 80800m³/h, maximum power 18.5KW
Structure: This fan can be made into explosion-proof and anti-corrosion type according to the requirements of use, and can be equipped with gravity check valves, fire valves or smoke exhaust fire valves according to the actual needs of the site
Silent duct fan
Model: JDF series
Performance: minimum noise 21dB(A), maximum air volume 3000m³/h
Structure: Compact centrifugal impeller, high-precision silent motor, low-noise anechoic treatment housing
Features: Silent design, large air volume, sufficient pumping and exhaust effect, dynamic balance G2.5
Uses: ventilation and ventilation of high-end hotels and conference center rooms, cold and heat recovery and replacement of energy-saving ventilation ceiling ceiling installation, pipeline concealment and concealed installation;
Authoritative certification: patent authorization, third-party inspection report, Zhejiang scientific and technological achievement appraisal products

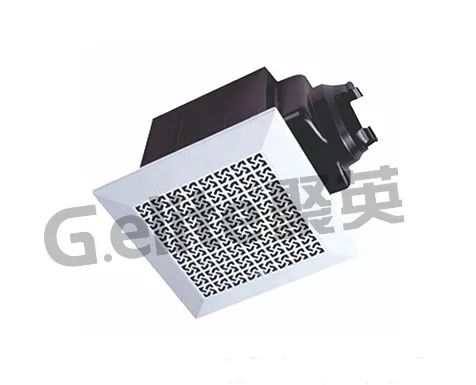

Ceiling room ventilator
Model: JVF series
Features: It has obvious advantages such as low noise, beautiful appearance, long service life, and simple installation
Usage: It is widely used in ventilation and ventilation in homes, shopping malls, hotels, restaurants, office buildings and other places
